Premium Shielded Zinc Alloy Ethernet Termination Plug (CAT8/CAT7/CAT6A) (CAT6A)

💍 This product is a high-performance modular plug designed for DIY enthusiasts and professionals alike, featuring exceptional versatility and durability in Ethernet termination. It is available in three variants—CAT6, CAT6A, CAT7, and CAT8—providing a tailored solution based on specific wire gauge needs. These reusable connectors allow for multiple terminations, making them an economical and environmentally friendly choice.

Product Name: DIY Zinc Alloy RJ45 Connector Cat6A/Cat7/Cat8 Plug

💍 Material Properties: The housing of this connector is constructed from robust zinc alloy die-casting and finished with a nickel plating that ensures both durability and resistance to corrosion. The contact points employ high-quality phosphor bronze with a nickel plating of 100 micro-inches, ensuring superior conductivity.

🔩 Compatibility: This connector is compatible with 22AWG to 24AWG stranded and solid wires found in Cat6A, Cat7, and Cat8 Ethernet cables. The design features a metal boot, adding another layer of protection and stability during installation.

Technical Specifications:

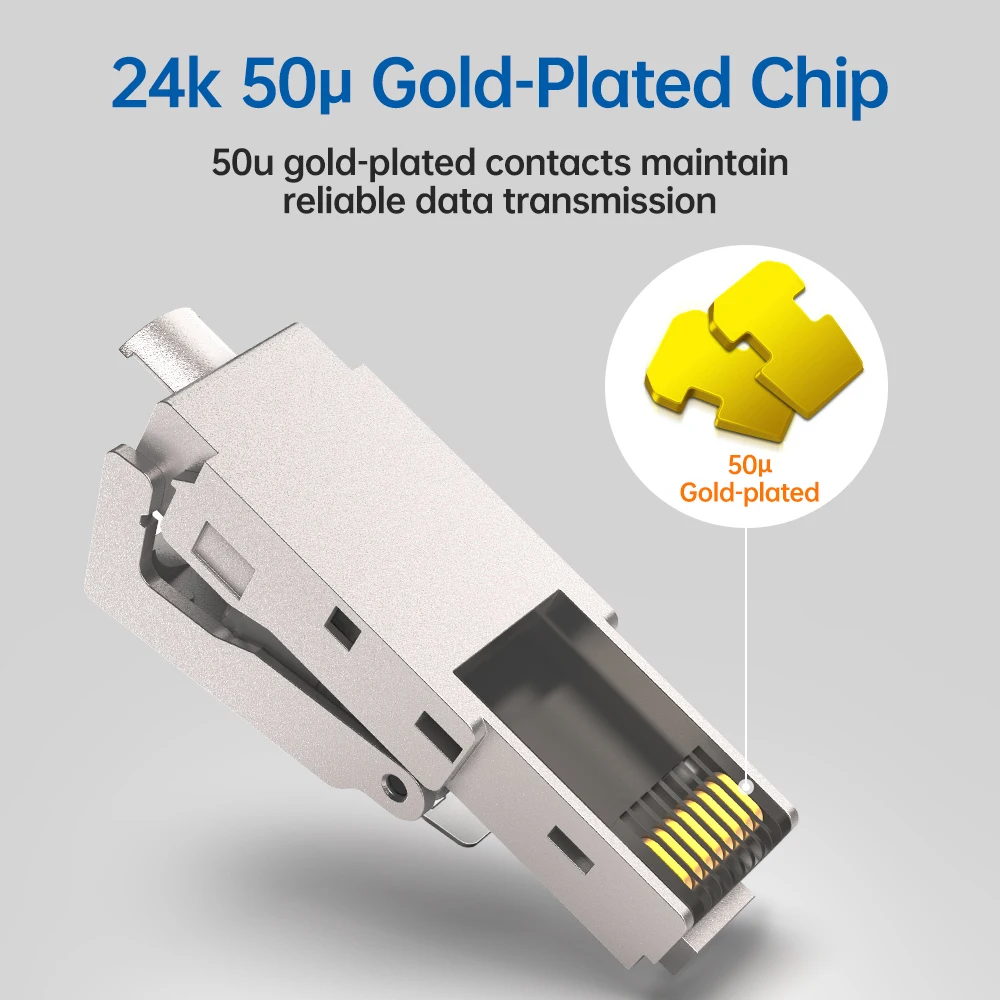

• Contact Finish: Minimum of 50 micro-inches gold plating on the surface contact area for enhanced performance.
• IDC Terminal: Made of titanium copper with tin plating for reliable electrical connections.
• PCB Rating: UL94-V0, indicating high flame resistance.

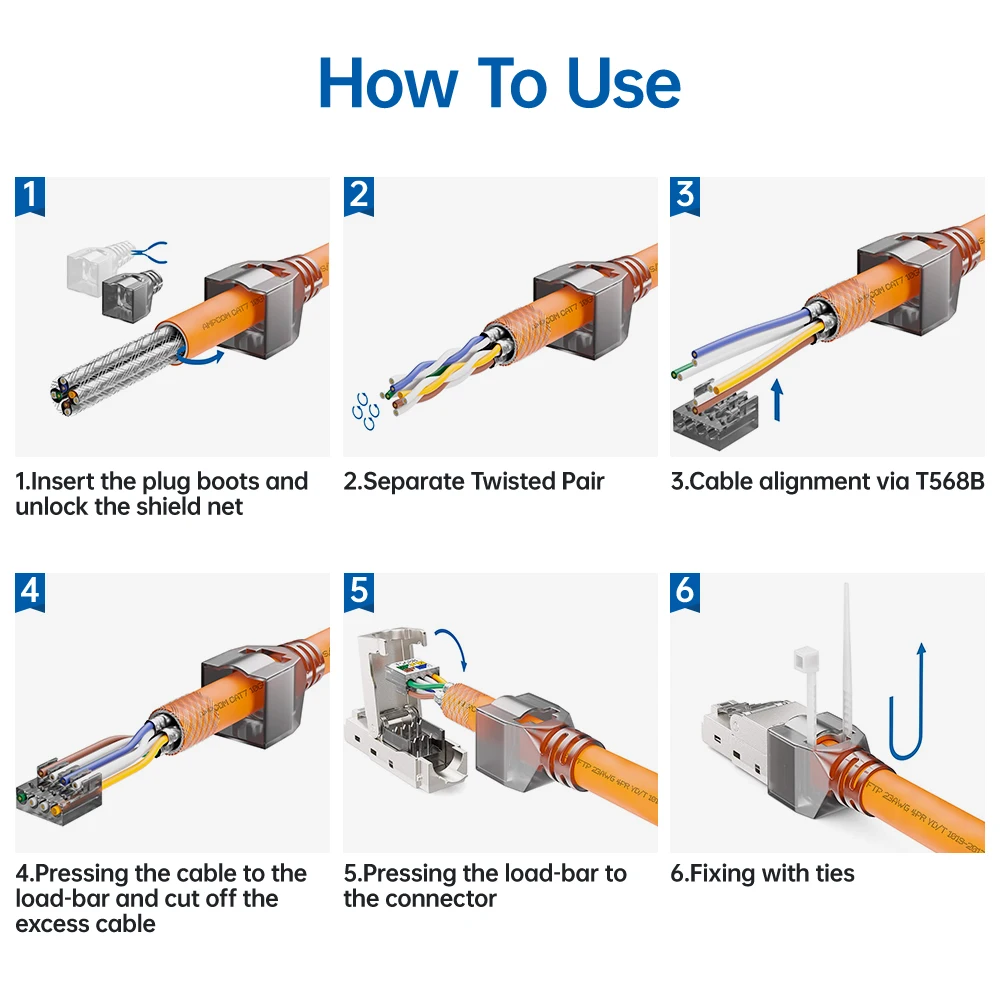

• Wiring Standards: Supports T568A & T568B wiring configurations, making it versatile for various network setups.
• Insertion Force: Maximum of 30N following IEC 60603-7-5 standards, ensuring a secure fit.
• Retention Strength: Displays a strong retention strength of 7.7kg between the jack and plug for secure connections.

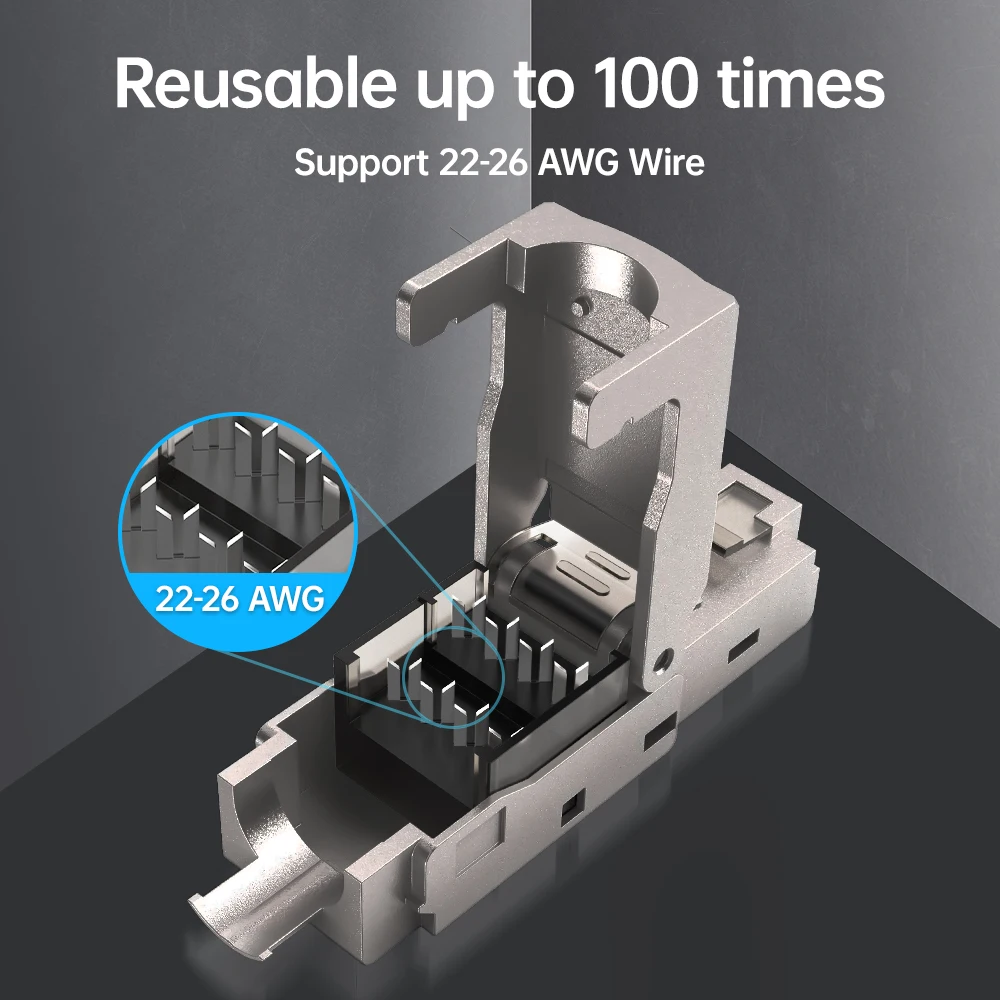

• Longevity: Contacts rated for a minimum of 750 cycles, in accordance with ISO/IEC 11801 and IEC 60603-7-5. IDC terminals allow for up to 20 repeated installation cycles without degradation in performance.
• Compatible Cable Jacket OD: Fits cables with an outer diameter ranging from 6.0mm to 8.0mm.
• Operating Temperature Range: Designed to function reliably within a temperature range of -10°C to 60°C.

🛡️ Packing: Each connector is individually packaged in a durable PE bag, ensuring protection during storage and transport.

🧠 This CAT8 STP RJ45 Connector is an ideal solution for high-speed networking, providing exceptional performance while being adaptable to various installations. Whether you're building a new system or upgrading an existing one, this connector meets the demands of modern Ethernet applications with reliable precision.
