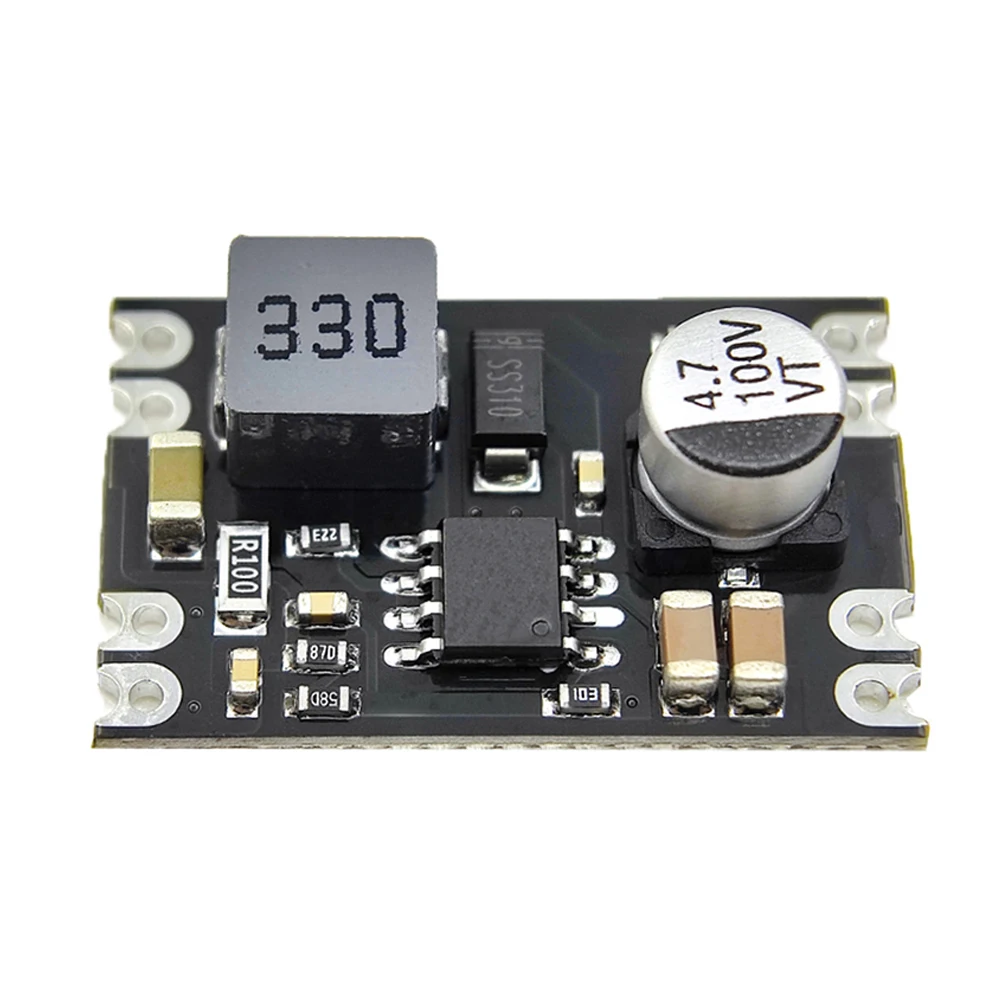

High - Efficiency Adjustable DC to DC Voltage Regulator Buck Converter (24V)

⚙️ DC to DC Adjustable High Efficiency Voltage Regulator

📦 Introducing our advanced DC to DC Adjustable High Efficiency Voltage Regulator, engineered to provide reliable voltage conversion from a broad input range of 6V to 100V down to selectable output levels of 5V, 9V, 12V, or 24V. This Buck Converter module is ideal for DIY power supply projects and electronic applications where efficiency and compact design are paramount.

🔧 Key Features:

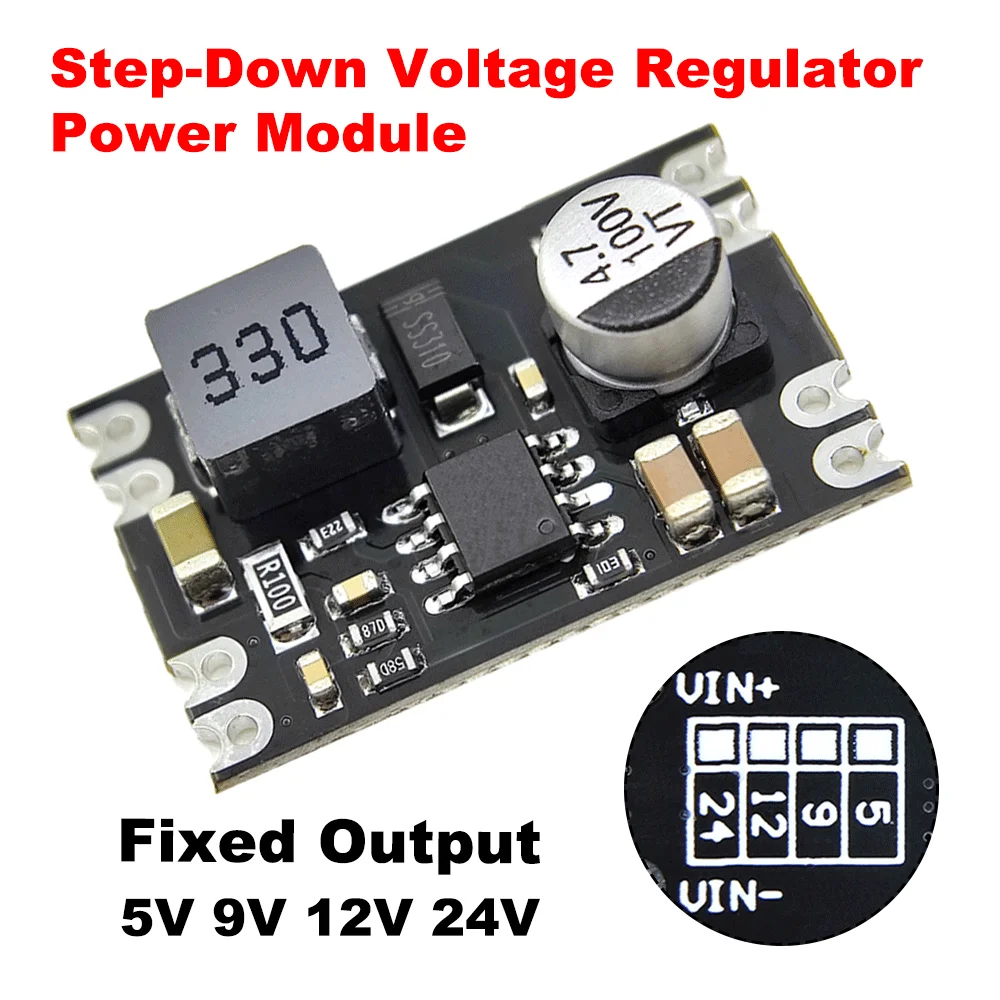

• Fixed Output Voltages: Select from 5V, 9V, 12V, or 24V to match your project’s specific requirements.
• Overheat and Overload Protection: Built-in protective measures ensure module safety and longevity during operation.
• Compact Design: With dimensions of just 25.5mm x 16.5mm x 7mm, this ultra-compact module is easy to integrate into tight spaces.
• High Efficiency: Achieves conversion efficiencies of up to 96%, minimizing energy loss during voltage reduction.
• Rapid Installation: Simplified soldering options allow for quick setup, making it accessible even for those new to electronics.

🧩 This DC-DC voltage reduction module effectively transforms high direct current into low voltage electrical energy. It requires that the input voltage exceed the desired output voltage, allowing for a plethora of configurations (e.g., converting 12V to 5V or 24V to 5V).

Technical Specifications:

• Input Voltage: 7V to 100V (with input voltage exceeding output)
• Output Current: 3A peak (sustained operation at max 2A)
• Output Ripple: Less than 30mA
• Output Accuracy: ±0.1V
• No-load Current: 1mA
• Operating Temperature: -40°C to +125°C
• Humidity Range: 20% to 90%
• PCB Layers: 2 layers for robust performance
• Shutdown Function: Integrated shutdown capability
• Heat Dissipation: Natural heat dissipation for enhanced reliability
• Service Life: 35,000 hours under rated conditions
• Working Frequency: 1MHz, providing fast response times

🏎️ Package Includes:

• 1x DC to DC Adjustable Voltage Regulator Module

💍 This versatile and efficient voltage regulator is perfect for a wide range of applications, from powering small electronic devices to serving as part of larger power systems. Enhance your projects with reliable and adjustable voltage regulation today!
