Universal USB Cable Tester with Short Circuit Detection and On - Off Switching

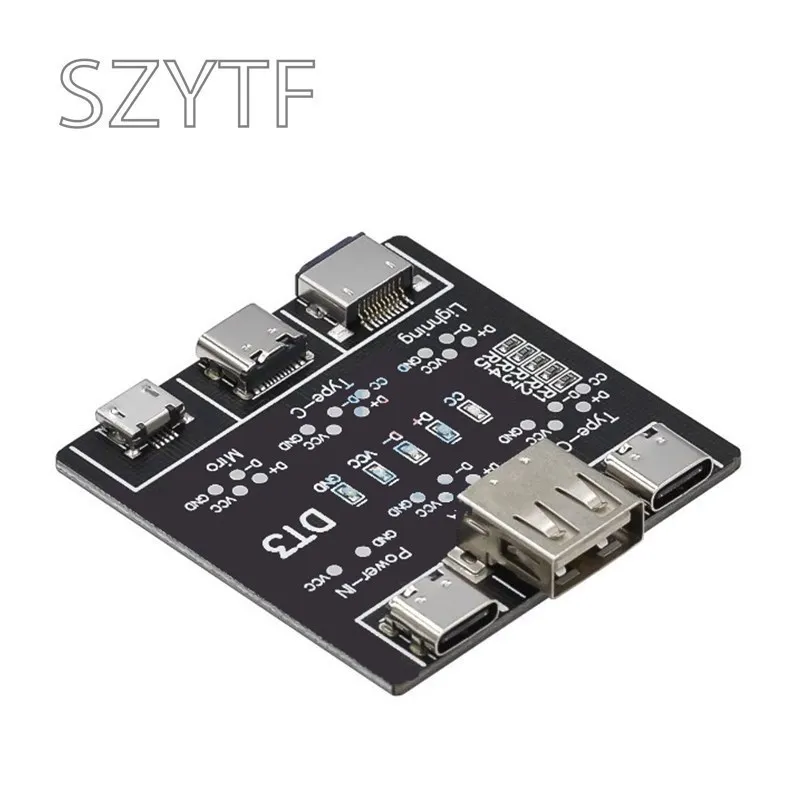

DT3 Data Cable Detection Board - USB Cable Tester

⚡ Introducing the DT3 Data Cable Detection Board, a versatile and indispensable tool for anyone working with various USB cables across both iOS and Android platforms. This USB cable tester is specifically engineered to quickly and accurately diagnose the functionality of multiple cable types.

Technical Specifications:

• Working Power: DC 5V (via TYPE-C Input)
• Working Current: 10-20 mA
• Model: UD11A03 (compatible with DT3)
• Weight: 12.7g
• Size: 55 x 50 x 10 mm
• Testable Data Line Ports: USB-A to MicroUSB-A, Type-C, USB-A to Lightning, Type-C to Type-C

⚡ How to Use the Tester:

1. Begin by plugging a Type-C charging cable into the Power-IN interface to enable power supply to the PCB board.
2. Connect one end of the data cable you wish to test into the appropriate input port, and the other end into the corresponding output port.
3. To assess the cable's functionality, monitor the indicator lights on the board.

⚡ Indicator Light Descriptions:

• All indicators (D+, D-, VCC, GND) lit: This signifies that the data line supports data transmission.
• Only VCC and GND indicators lit: This indicates that the data line lacks data transmission capabilities.
• For Type-C to Type-C data cable: All indicators (CC, D+, D-, VCC, GND) should be illuminated. For other cable types, the CC indicator will remain off.
• If VCC or GND indicator is off: This points to an irregularity in the charging function of the data line.

⚡ Important Notice:

⚡ During testing, ensure that only the designated Power-IN port and the input and output ports of the data line are utilized. Connecting other ports during the test may skew the results.

🏆 With the DT3 Data Cable Detection Board, you can ensure that your cables are functioning correctly, allowing for efficient troubleshooting and reliable performance across your devices.
